Custom Die Casting Services
From rapid prototypes to high-volume production runs, Our die casting services have you covered. We work with aluminum, zinc, and magnesium, and handle everything from tooling to finishing—plus, our experts make sure your die cast parts turn out just the way you need.
0.001”
Tight Tolerance
60+
Machines
1 Day
Fast Lead Time
Types of Die Casting Processes at QBH

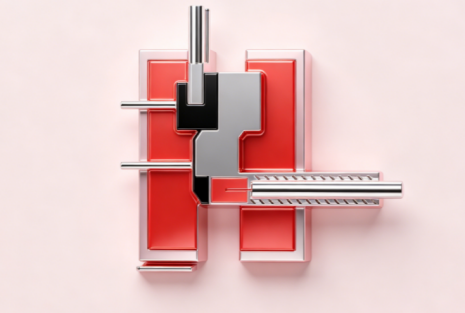

Cold Chamber Die Casting

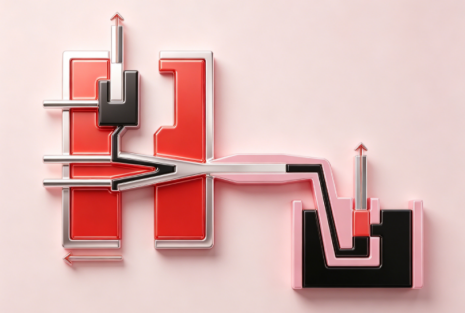

Hot Chamber Die Casting
Semi-solid Die Casting
Die Casting Capabilities
Tolerance
High-precision die casted parts need secondary machining to meet tolerance requirements, achieving accuracy up to ±0.01mm
Minimum Wall Thickness
Aluminum alloy recommended 1.5mm, zinc alloy can go down to 0.8mm
Wall Thickness Ratio
Keep within 1:3 ratio to avoid uneven filling
Hole Diameter
Due to high temperatures during aluminum die casting mold processing, round holes smaller than 3mm diameter require secondary drilling. Product threaded holes and external threads are formed through secondary machining.
Draft Angle
Minimum 0.5° to avoid demolding difficulties Maximum Die Life (Number of Cycles) Zinc: 1,000,000 Magnesium, Aluminum: 100,000
Lead Time
20-25 days. Specific timing varies based on mold type and product structure complexity
Die Casting Materials
Die cast tooling uses hardened steel for withstand high temperatures and pressure. For die castings, non-ferrous metals are preferred for their fluidity and low melting points. Ferrous metals are used in some cases but less commonly.

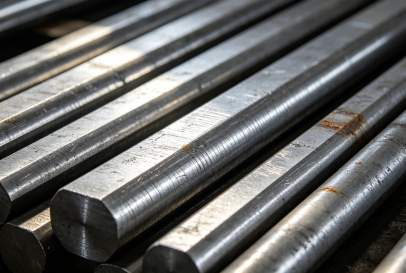

Hardened Tool Steel
- Steel H13: Strong at high heat. Tough and crack-resistant. Stays hard when hot. Good for aluminum and magnesium casting.
- Steel 8407: Handles heat changes well. Tougher than H13 steel. Conducts heat better and lasts longer. Good for heavy-duty casting work.
- Steel 2344: Strong at high heat. Resists cracking from heat cycles. Easy to machine and polish. European steel grade for detailed parts.
Die Casting Alloys
- Aluminum Die Casting: ADC10, A380, ADC12, Pure Aluminum, DM6, HA6, HA4, 6063
- Magnesium Die Casting: AZ91D, AM60B, AM50A
- Zinc Die Casting: ZAMAK2, ZAMAK3, ZAMAK5

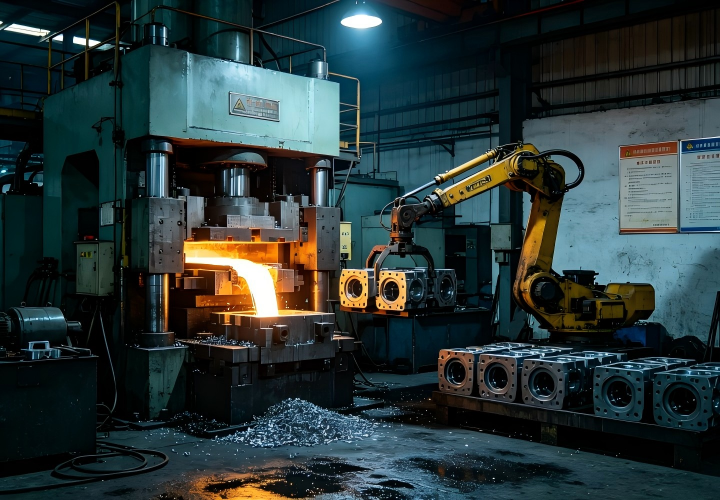

Die Casting Manufacturer with
Advanced Production Facilities
QBH is a certified die casting manufacturer equipped with 60+ advanced die casting machines, serving global customers across automotive, industrial, robotics, and electronics industries.
Our factory in Shenzhen, China, integrates die casting tooling, high pressure die casting production, CNC machining, and finishing under one coordinated system—ensuring consistent quality and fast turnaround.
Why Choose Us
Cost-effective Solutions
We reduce your die casting costs through expert mold design and free DFM analysis, ensuring the most efficient material usage.
Fast Lead Time
Leveraging our in-house facilities and certified factory network, we deliver die casting samples in as little as 1 day with real-time project tracking.
Quality Assurance
ISO 9001:2015 certified. Strict quality checks at every step. We inspect parts pre-production, in-production, first article inspection, and pre-delivery.. Tight tolerances down to ±0.01mm.
